12 STRING ELECTRIC GUITAR MACHINE HEADS GOLD SQUARE TOP

• !2 string machine heads - two sets of six in line
• Fit solid head type guitar headstock
• Gold plated items
• fixing screws included
• For steel 12 string acoustic or electric guitars

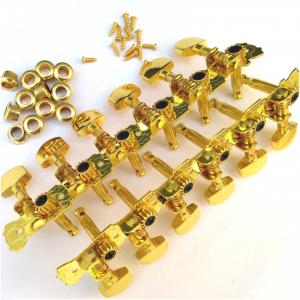

A set of 12 string guitar machine heads suitable for acoustic or electric guitars with solid headstock.
These feature gold mounting plate and gold shafts, gold worm drive and cog gear with black screw and gold buttons. Supplied with 14 gold plated fixing screws and 12 ferrules.
This type of machine head is designed for rear fitting through the guitar with a solid headstock. A set of 6 left and 6 right is supplied. These are reversible and individual drives/shafts can be removed for cleaning and repair.
Dimensions
The chrome fixing plates are 165mm long. The first fixing hole is 7mm from the end nearest to the guitar nut. Subsequent holes are 25mm apart - total 7 holes.
The first shaft is 13mm from the end nearest the guitar nut. Subsequent shafts are 25mm apart - total of 6 shafts.
The shafts are 27mm long from the mounting plate.
The shafts each have 2 string holes which are 12mm and 22mm along the shaft.
The shafts are 6mm diameter.
