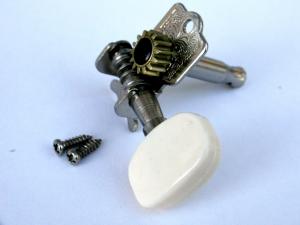

- One machine head suitable for guitar ukulele or other string instrument
- These single items can be used as replacements . The item is reversible so can be used for bass or treble strings.
- Shaft is formed for solid head guitar with a hole set in a groove near the end
- Shaft is 6mm diameter and 27mm long ( from the mounting plate), two screw holes are 24mm apart. The cream plastic button is 23mm across
- The gearing ratio is 14/1
The fixing plate is held in place by two screw holes 24mm apart.
The shaft is 6mm diameter.
The shaft length is 27mm with the string hole 22mm from the base plate.
The base plate is 31.5mm long and 16.5mm wide.
The buttons are 23mm wide.
These are usually fitted to solid headstocks where the tuner comes up through the back of the headstock.
