HOT RAIL TELECASTER NECK HUMBUCKER

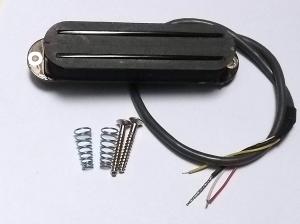

This is a twin "hot rail" style twin coil humbucker pickup with 4 wires for coil tapping.
The pickup can be used in any position on a stardard stratocaster guitar.
The pickup has two pole pieces and is fully shielded for low noise and wired for hum cancelling
.
This pickup has high output power.
The combined coil resistance is approximately 7.2 kOhms and the individual resistance of each coil is 3.6 kOhms.
The total impedance is 5.7H.

Please check the diagram for pickup size. It should fit the majority of strat type pickguards.
The two fixing screw holes are 77mm apart.
2 chrome fixing screws will be supplied.

The coils are terminated in solder spots underneath the pickup to which the wiring cable is soldered.
4 cores are available for wiring to allow coil tapping if required.
For standard configuration the black wire (attached to the screen) is
the common or ground and the yellow wire is the live which connects to the volume pot.
The red and white wires are soldered together and connect the two coils to achieve the humbucking action.
If required you can separate the white and red wires and use the two coils in any configuration
for more complicated coil tap wiring arrangements.
